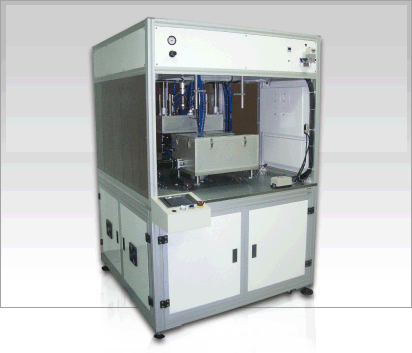

Auto Vacuum Display Laminator > TP-501A
    Characteristics
  • Lamination speed: 60/hr (depending on size )
  • Lamination Accuracy: ± 0.05mm
  • Position Accuracy: ± 0.01mm
  • Lamination size: 7”~12”
  • Lamination pressure:  5~100kg
  • Laminator size:
    (L) 1260 × (W) 1260 × (H) 2130mm
  • System power: 220VAC~50/60 Hz (6.6kw)
  • Air pressure requirement:5~8kg/cm2
    (consumption 2m3/hr)
  • Vacuum requirement: 750mm/Hg (consumption: 5m3/hr)
  • TP module-LCM (Hard=Hard)
