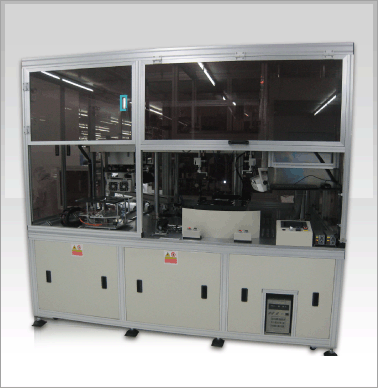

  TP-106A
    Characteristic
  • Lamination speed: 80/hour
  • Lamination Accuracy: ± 0.05mm
  • Position Accuracy: ± 0.01mm
  • Lamination size: 4”~7”
  • Lamination pressure: 1~100kg
  • Lamination Angle: 0~3 degree
  • Laminator size:
    (W) 1270 × (D) 2400 × (H) 2300mm
  • System power: 220VAC~50/60 Hz (9.8kw)
  • Air pressure requirement: 5~8kg/cm2
    (air Consumption 2m3/min.)
  • Lamination Function: OCA / Air Gap
  • CCD positioning system
