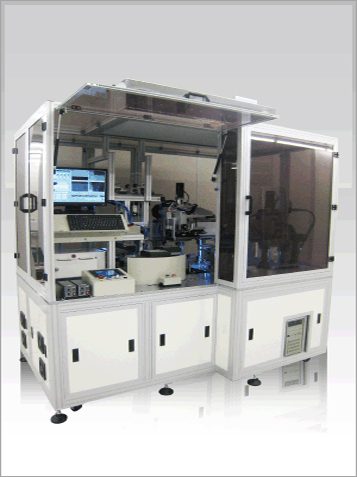

Backlight Auto Assembly  > TP-103D
    Characteristic
  • Lamination speed: 240/hour
    (depending on size)
  • Lamination Accuracy: ± 0.05mm
  • Lamination size: 60x60mm, 120X180mm
    (under CCD scanning positioning)
  • Lamination pressure: 0.5~16kg
  • Lamination Angle: 0~4 degree
  • Laminator size:
    (W) 1270 × (D) 2490 × (H) 2350mm
  • System power: 220VAC-50/60HZ
  • Air pressure requirement: 5~8kg/cm2
  • Air Consumption: 1600L/min
  • CCD positioning system: PC base
