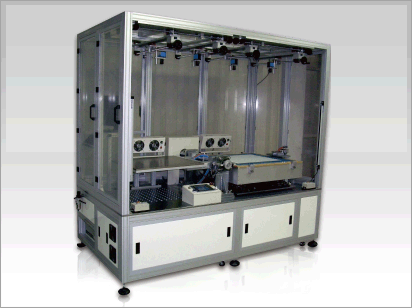

Large Scale Laminator > TP-302A
    Characteristic
  • Lamination speed: 30~40sec.
    (depending on size)
  • Lamination Accuracy: ± 0.05mm
  • Position Accuracy: ± 0.01mm
  • Lamination size: 10”~450x500mm
  • Lamination pressure: 35~130kg
  • Lamination space: 0~10.95mm
  • Laminator size:
    (L) 2000 × (W) 1100 × (H) 2095mm
  • System power: 220VAC~50/60 Hz (5.7kw)
  • Air pressure requirement: 5~8kg/cm2
    (air consumption 0.3m3 / hr)
  • Lamination Function: ITO film-OCA (soft-soft), OCA-glass/PC (soft-Hard), CG-ITO glass (Hard-Hard)
  • CCD positioning system
